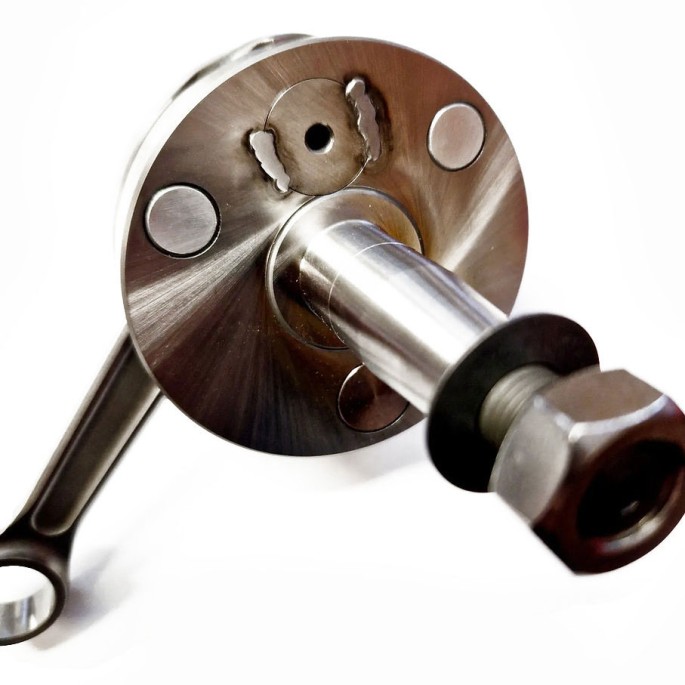

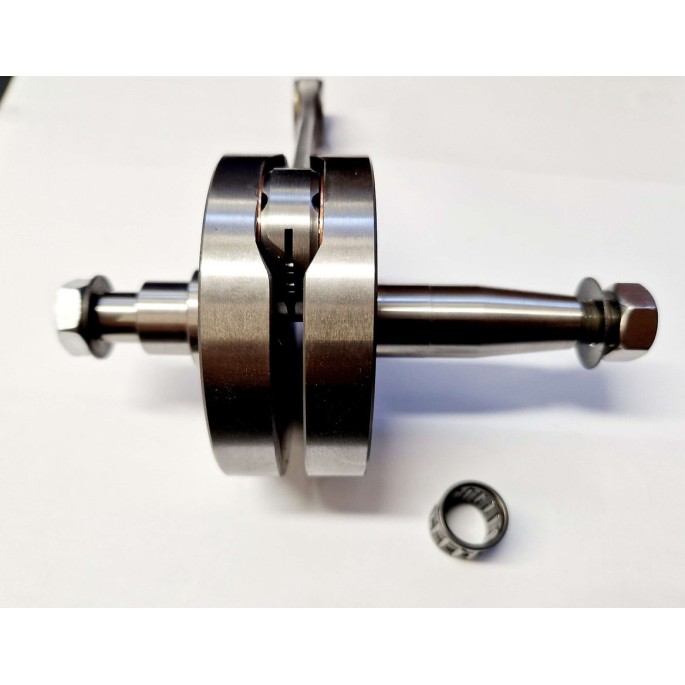

Crankshaft Egig 187 S/R

- 56stroke

- 88mm cheeks

- 118 CNC forged connecting rod

- 6204 bearings on both sides

- Clutch side sliding seat (no pull-in tool required for assembly)

- Shaft seal clutch side 27x47x6

- Shaft seal on ignition side 20x32x7

- Spindle dimension in the cheek area 89mm

- Spindle dimension in connecting rod area 91mm

Swaged crankpin

- Approx. 1,5 mm spacer required for unplanned engine block



For Piaggio & Sip engine block
